TECHNICAL DATA
- Max. Operating Temperature: 70°C
- Min. Bending Radius: 20 x cable Ø
- Production Standards: EN 60794-3-12
INTRODUCTION
These cables used in indoor installations and telephone
exchanges and subscriber distributions, signal and data
transmission.
CODE of CABLE

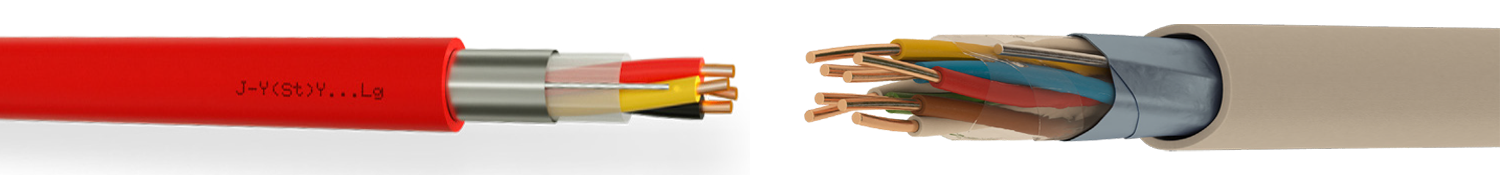

- J-Y(St)Y Lg
CONSTRUCTION
- Conductor: Class 1 electrolytic solid copper (IEC 60228, DIN VDE 0295, EN 60228)
- Insulation: PVC (VDE 0815) (EN 50290-2-21)
- Stranding: Pair stranding in layers
- Wrapping: A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically
- Screen: Tinned copper earthing wire, Al/PET tape
- Outer Jacket: UV resistant PVC outer jacket. RAL 7035 (Grey) (EN 50290-2-22)
