TECHNICAL DATA
- Max. Operating Temperature: 70°C
- Rated Voltage: 300/500V
- Min. Bending Radius: 8x Cable Outer Diameter
- Production Standard: EN 50288-7
CONSTRUCTION
Conductor: Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation: PE-Polyethylene compound to EN50290-2-23 Black/White twisted pairs with numbered cores
Binder Tape: Polyester foil on each twisted pair
Individual Screen: Aluminium/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape: Polyester foil on overall cable core formed by stranded pairs
Collective Screen: Aluminium/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Inner Sheath: PVC compound to EN50290-2-22
Armour: Galvanized steel braid to EN 10257-1
Outer Sheath: Flame retardant PVC compound to EN50290-2-22.
Blue for intrinsically safe cable, Black for UV resistant and/or non-intrinsically safe cable, Gray for indoor applications
CODE of CABLE

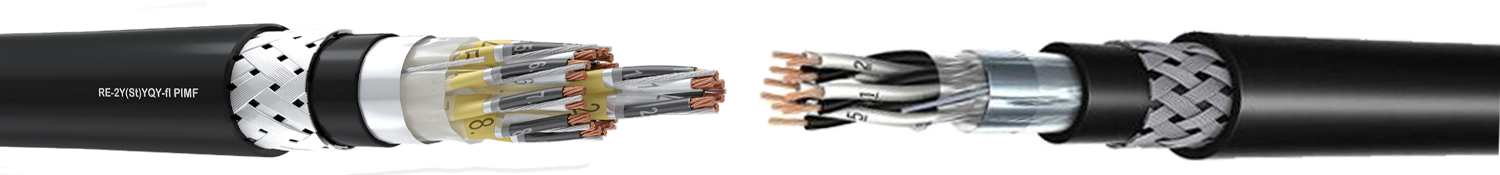

- CU/PE/ISCR/OSCR/PVC/SWB/PVC; RE-2Y(St)YSWBY-fl PIMF
INTRODUCTION
These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications. These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply.
SECTION RANGE
- From 0.50mm2 up to 2.5mm2
CONDUCTOR QUANTITY
- From 2 pairs up to 50 pairs
COLOUR CODE of CABLE
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.
