TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Rated Voltage: 300/500V
- Min. Bending Radius: 7.5x Cable Outer Diameter
- Production Standard: EN 50288-7
CONSTRUCTION
Conductor: Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation: Silicone compound to EN 50363-1
Binder Tape: Polyester foil on overall cable core formed by stranded cores
Collective Screen: Aluminium/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Outer Sheath: LSZH compound to EN 50290-2-27.
Blue for intrinsically safe cable, Black for UV resistant and/or non-intrinsically safe cable, Gray for indoor applications, Orange or Red for fire resistant
CODE of CABLE

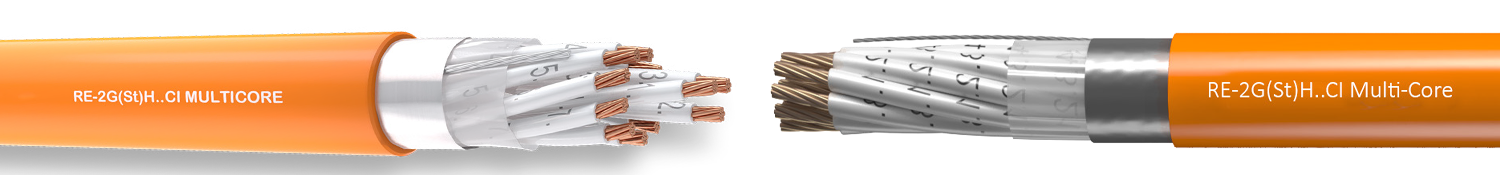

- CU/SI/OSCR/LSZH; RE-2G(St)H..CI(MULTICORE)
INTRODUCTION
These cables used for connecting instruments and control
systems for analogue or digital signal transmission for indoor
and outdoor applications, chemistry industry, petrochemistry
industry, power plants, indoors and outdoors, dry, damp
and wet environments, gas stations, water conveyance systems.
These cables shall not be connected directly to mains electricity
supply or other low impedance sources, since they are not
designed to be used for power supply.
SECTION RANGE
- From 0.50mm2 up to 2.5mm2
CONDUCTOR QUANTITY
- From 1 core up to 50 cores
COLOUR CODE of CABLE
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.
