TECHNICAL DATA

  • Max. Operating Temperature: 70°C
  • Max. Short Circuit Temperature: (max. 5 sec.)
  • Cross section ≤ 300 mm2: 160°C
  • Cross section > 300 mm2: 140 °C
  • Rated Voltage: 0,6/1kV (Um: 1200V)
  • Min. Bending Radius: 12x Cable Outer Diameter
  • Production Standard: IEC 60502-1, VDE 0276-603,
    BS/EN 60502-1

APPLICATION

These cables refer to PVC insulated, PVC sheathed power
cables with a rated voltage of 0,6/1kV. These cables used for
electricity supply in a low voltage installation system. They
are suitable for installation indoors, outdoors,underground,
in cables ducts and power and switching stations, local energy
distributions, industrial plants, and places where is no risk of
mechanical damage.

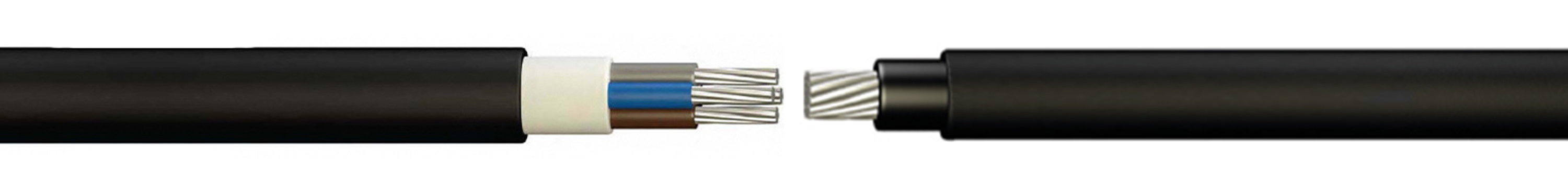

CONSTRUCTION

  • Conductor: Stranded or Shaped Round Class 2
    Copper conductor as per IEC 60228
    * For sections between 1.5mm2 – 10mm2; Solid Round Class 1
    conductor can be also supplied upon request.
  • Insulation: PVC insulation material. Thickness shall be as per
    IEC 60502-1
  • Outer Sheath: PVC outer sheath material.
    Thickness shall be as per IEC 60502-1
    * PVC Insulation/Outer Sheath material up to for 105°C
    continuous operation also available upon special request.

SECTION RANGE

  • From 10mm2 up to 630mm2

CODE of CABLE

  • Al/PVC/PVC; NAYY; YAVV

CONDUCTOR QUANTITY

  • From 1 Core up to 5 Cores

COLOUR CODE of CABLE

  • Insulation Colours code will be according to the
    International Standards or customer’s request/demand.

FIRE PERFORMANCE Of CABLE SHEATHS

  • Cables can be supplied with special flame retardant PVC
    outer sheath to comply with the flame test requirements of
    IEC 60332 Category A-B and C.
