TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Rated Voltage: 0,6/1kV
- Min. Bending Radius: 4x Cable Outer Diameter
- Production Standard: IEC 60092/353,
IEC 60092/350-360, IEC 60332/1-2,
IEC 60332/3-22 Cat A, IEC 60754 / 1-2,
IEC 61034 / 1-2 ( DIN EN 50268 / 1-2), IEC60811 /403

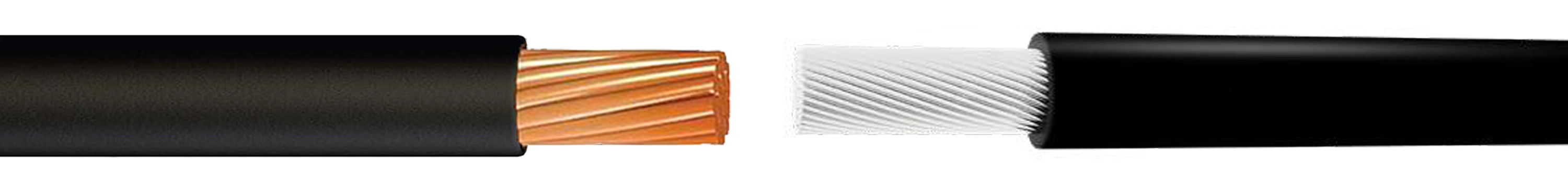

CONSTRUCTION
- Conductor: Electrolytic, stranded, annealed bare copper wire
IEC 60228 Class 5 (Class 2 and / or tinned on request) - Insulation: Halogen free, flame retardant, cross linked
polyolefin compound (HF90). - Color: Black, red, blue and other colors
CODE of CABLE
- M2X
APPLICATION
These cables are used as fixed wiring in control panels, switch
boards and various electrical enclosures and also used as fixed
installation cables in various electromechanical and electronic
equipments.
SECTION RANGE
- From 1mm2 up to 300mm2
CONDUCTOR QUANTITY
- Single Core
COLOUR CODE of CABLE
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.
