TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Rated Voltage: 0,6/1kV
- Min. Bending Radius:
For cables D ≤ 25 mm 4xD Cable Outer Diameter
For cables D > 25 mm 6xD Cable Outer Diameter - Production Standard: IEC 60092/353,
IEC 60092/350-360, IEC 60332/1-2,
IEC 60332/3-22 Cat A, IEC 60754 / 1-2,
IEC 61034 / 1-2 ( DIN EN 50268 / 1-2), IEC60811 /403

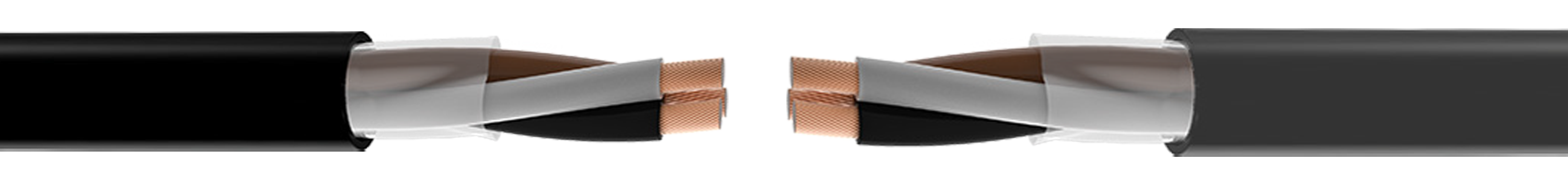

CONSTRUCTION
- Conductor: Electrolytic, stranded, annealed copper wire
IEC 60228 Class 5 (Class 2 and / or tinned on request) - Insulation: Cross linked polyethylene compound (XLPE)
- Inner Covering: Separating foil
- Outer Sheath: Halogen-free, flame retardant, thermoplastic
polyolefinbased compound (SHF 1). - Color: Black or Grey or Red
- NOFI: With separating foil
CODE of CABLE
- M2XH (NOFI)
APPLICATION
Used as fixed installation cables in various electromechanical and electronic equipments. Since it has type approval, it can be used in marine switchboards.
SECTION RANGE
- From 1mm2 up to 300mm2
CONDUCTOR QUANTITY
- From 1 cores up to 30 cores
COLOUR CODE of CABLE
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.
