TECHNICAL DATA
- Max. Operating Temperature: 70°C
- Min. Bending Radius: 10 x cable Ø
- Production Standards: EN 60794-3-12
INTRODUCTION
These cables are used as underground cable ducts.
These cables having 0.4 and 0.5 mm conductor diameter are
used for distribution network and 0.6, 0.63, 0.65, 0.8 and 0.9
mm conductor diameter are used for long distance network.
CODE of CABLE

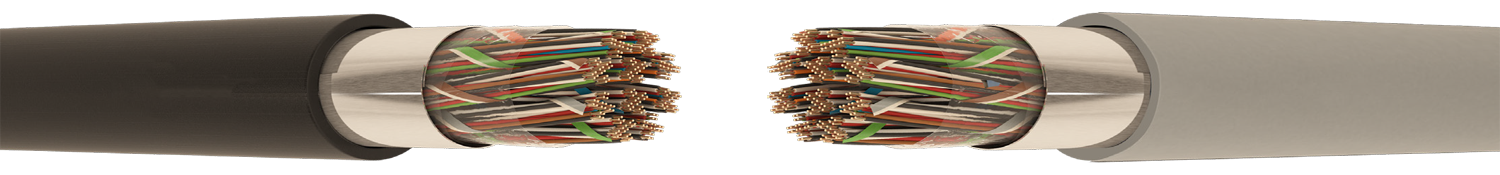

- KPD-AP; A-02YS(L)2Y
CONSTRUCTION
- Conductor: Electrolytic annealed solid copper (CCITT Yellow
Book Vol. III-2-G.541 B article, IEC 28 and ASTM B 3) - Insulation: Color coded foam skin polyethylene cladded with
solid polyethylene (BS 6234 Type 03 – ASTM D 1248) - Stranding: Star quads or pairs, each having special lay length to
minimize the crosstalk and capacitance unbalance, are
assembled into 10 pairs units. Groups having 25, 50 or 100
pairs are stranded together into cable core - Wrapping: A non-hygroscopic and dielectric polyester tape is
applied on the cable core longitudinally or helically - Screen: Both sides are coated with copolymer coated flat
aluminium tape over cable core longitudinally for screening - Outer Jacket: Linear low-density or medium-density, UV
resistant black polyethylene outer jacket (ASTM D 1248).
