TECHNICAL DATA
- Max. Operating Temperature: 70°C
- Min. Bending Radius: 10 x cable Ø
- Production Standards: EN 60794-3-12
INTRODUCTION
These cables are used in direct burial, underground cable ducts, indoor installations. These cables having 0.4 and 0.5 mm conductor diameter are used for distribution network and 0.6, 0.63, 0.65, 0.8 and 0.9 mm conductor diameter are used for long distance network.
CODE of CABLE

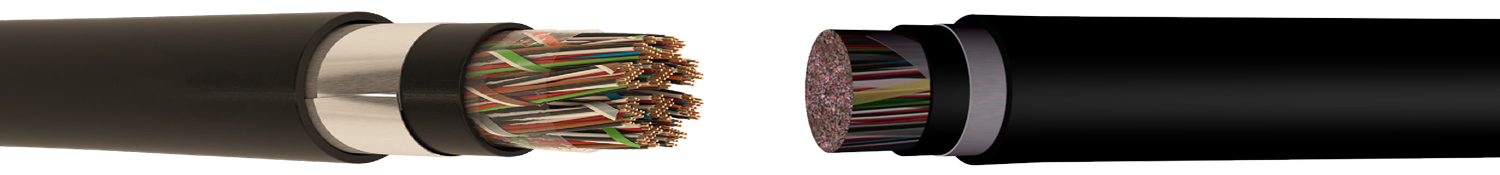

- KPD-HAH; A-02YSH(L)H
CONSTRUCTION
- Conductor: Electrolytic annealed solid copper
- Insulation: Color coded foam skin polyethylene cladded with solid polyethylene (BS 6234 Type 03 – ASTM D 1248)
- Stranding: Star quads or pairs, each having special lay length to minimize the crosstalk and capacitance unbalance, are assembled into 10 pairs units. Groups having 25, 50 or 100 pairs are stranded together into cable core
- Wrapping: A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically
- Inner Jacket: Flame retardant, UV resistant halogen-free outer jacket. RAL 7035 (Grey)
- Screen: Both sides are coated with copolymer coated flat aluminium tape over cable core longitudinally for screening
- Outer Jacket: Flame retardant, UV resistant halogen-free outer jacket. RAL 7035 (Grey)
