- Operating Temperature: -40°C – +70°C
- Rated Voltage: 0,6/1kV
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.

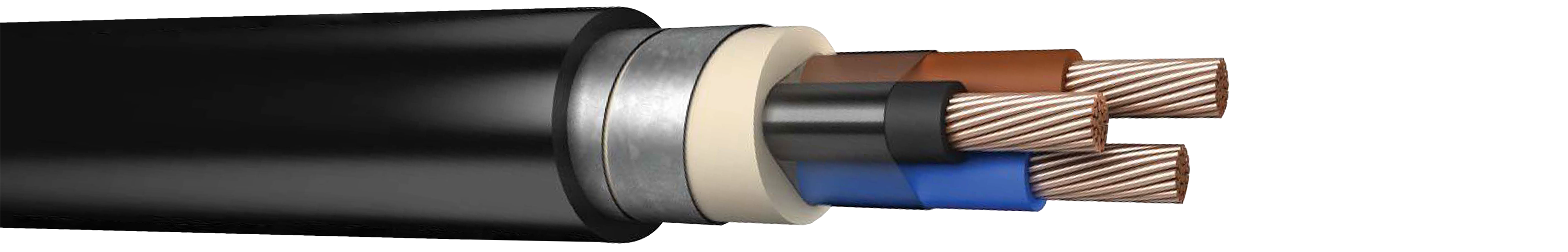

- Conductor: Electrolytic bare annealed copper wire
- Insulation: Cross linked polyethylene compound (XLPE)
- Polyester Tape Separator:
- Inner Sheath: Halogen free compound
- Metallic Shield: Galvanised steel metal strips with a minimum
thickness of 0,500 mm ± 10%. metal strips shall be wrapped
around the commoncasing in two folds helicoidal/y by
remaining a gap between adjacent strips at most equal to 20
percent of the strip width
- Outer Sheath: Halogen free compound
